LC Upc

Basic Info.

Model NO.	LC UPC-SC UPC
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	>10000N
Core	Single Core
Certification	RoHS, ISO9001
Brand	OEM
Sheath Material	LSZH
Return Loss	Upc > 50dB ; APC> 60dB
Insertion Loss	Il<0.25dB
Transport Package	Carton
Specification	2.0mm
Trademark	SMD
Origin	Shenzhen China
HS Code	8544700000
Production Capacity	100000/Month

Product Description

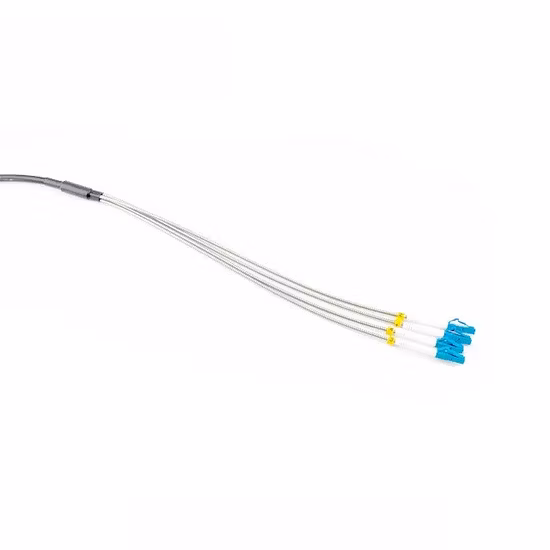

LC UPC-SC UPC Network Fiber Optical Patch Cord
Features
Good durabilityGood exchangeabilityHigh temperature stabilityLow insertion loss and back reflection loss
Applications
Optical Distribution FrameComputer NetworksFiber Optic Communication SystemsOptical Access NetworksLocal Area NetworkFiber Optic Sensors

Fiber Optic Patchcord

Features Applications > Compliant with Telcordia GR-326-Core, TIA/EIA and IEC> Customer length> Various connector type available> Environmental stable > Telecommunication network> CATV system> Local Area Network> Active/Passive device> FTTH and FTTX

Specification

Optical Performance	Single Mode		Multi Mode
Insertion Loss	≤0.20dB		≤0.30dB
Return Loss	≥45dB(PC)		≥35dB
	≥50dB(UPC)
	≥60dB(APC)
Repeatability	≤0.10dB
Durability	≤0.2dB typical change, 1000 matings
Operating Temperature	- 20 ~ +75ºC
Storage Temperature	- 40 ~ +85ºC
Endface Geometry
Parameter	2.5μm ferrule		1.25μm ferrule
	UPC	APC	UPC	APC
Radius of Curvature	10~25mm	5~12mm	7~25mm	5~12mm
Apex Offset	0~50μm	0~50μm	0~50μm	0~50μm
Fiber Height	-100~50nm	-100~100nm	-100~50nm	-100~100nm
Angle	--	7.7-8.3degree	--	7.7-8.3degree
3D - Geometry

AssemblyType	FiberCore	ConnectorType	Fiber Type	CableDiameter	CableJacket Type	Cable Color	Length
PC: PATCHCORDPT: PIGTAIL	Simplex: 1Duplex: 2. ...	SCP: SC/PCSCA: SC/APCFCP: FC/PCFCA: FC/APC	SM: 9/125M5: 50/125M6: 62.5/125OM: OM3 50/125	09: 0.9mm16: 1.6mm20: 2.0mm30: 3.0mm	P: PVCL: LSZH	YE: YELLOWOR: ORANGEAQ=AQUA	11-99m
