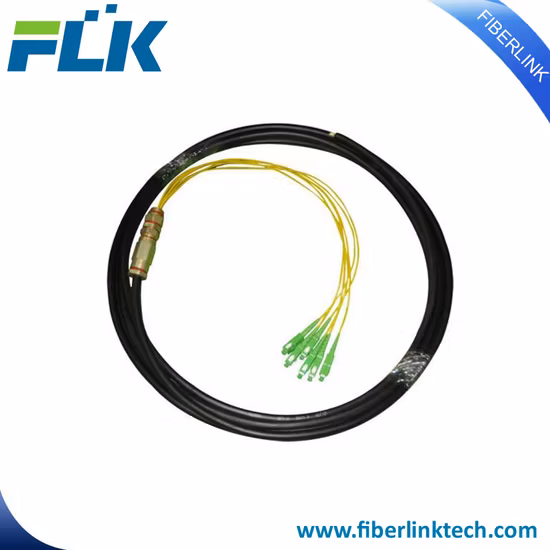

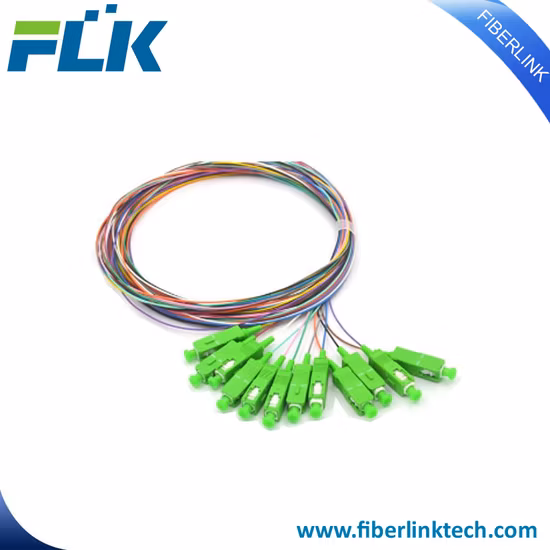

Sc 12 Core 0.9 Fiber Optic Pigtail

Overview

Basic Info.

Origin	China
HS Code	8517709000
Production Capacity	50000 PCS/Yeat

Product Description

Product Description

Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses,it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. Most commonly used types are SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC … fiber optic pigtail.

Related Products

Product Parameters

Features:

• Low insertion loss
• High return loss
• Excellent mechanical endurance
• Good in repeatability

Specification:

Fiber type	SM	9/125, G.652D, G657A
	MM	50/125, 62.5/125, OM3
Connector	Type	SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC
	Boot Color	Blue, green , Beige...
	Hood	Ø 0.9 mm, 2.0mm, 3.0mm
Materials	Ferrule	Zirconia
	Boot	Beige , black , yellow, green , blue...
	Dust cap	PE (white,or other)
	Cable	PVC Buffer, LZSH, Aramid yarn, PVC jacket…
Length	1~2 meters
Technical Characteristics	Insertion Loss	< 0.3dB
	Return Loss	SM:> 45 dB(PC) >50 (UPC), >60(APC); MM:>35 dB
	Operating Temperature	-40°C to +85°C
