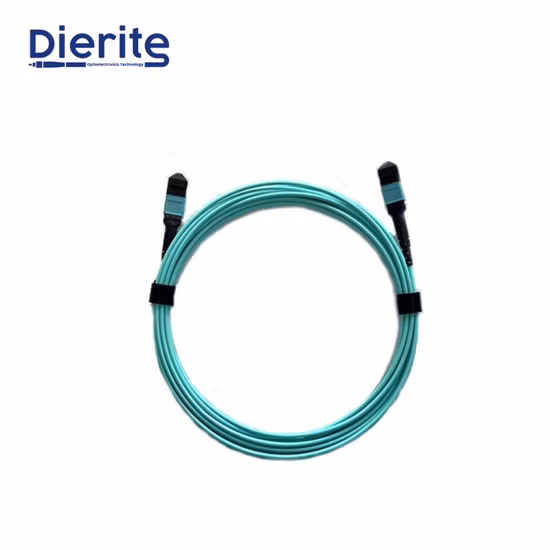

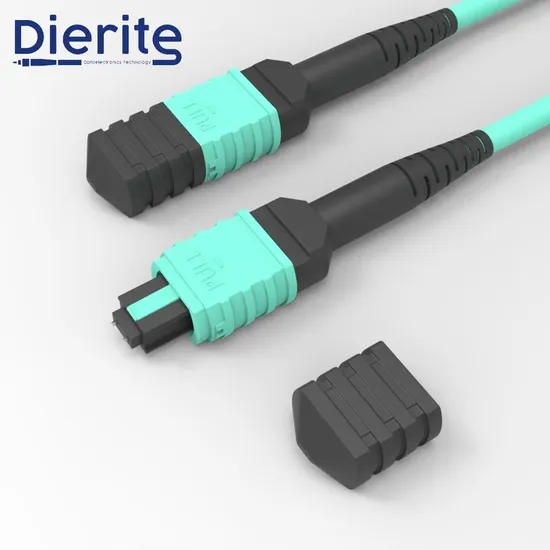

OS2/G657A/Om3/Om4 MPO or MTP Fibers Patch Cord Trunk Cable for Connect Optical Modules

Overview

Basic Info.

Core	4-48 Cores
Certification	CE
Brand	OEM
Sheath Material	PVC/LSZH
Connector Type	Us Conec MTP®
Outer Jacket Color	Refer to Chromatogram
Operating Temperature	-20°c~70°c
Storage Temperature	-40°c~85°c
Pin Type	Female or Male
Fiber Count	4-48 Cores
Outer Jacket Material	LSZH, PVC
Fiber Color	Refer to Chromatogram
Cable Length	1m,3m,5m or Customer Specified
Cable Dimension	3.0mm or Customer Specified
Transport Package	Carton
Trademark	Dierite
Origin	Changzhou Jiangsu China(Mainland)

Product Description

OS2/G657A/OM3/OM4 MPO or MTP fibers patch cord trunk cable for Connect optical modules

Product Parameters

Technical parameters

Fiber type	OS2/G657A/OM3/OM4
Connector type	Type	Wavelength	Headface	Standard type		Low loss type
				IL(Max)	RL(Max)	IL(Max)	RL(Max)
MPO/MTP	MM	@850/1300	12F/PC	<0.5dB	NA	<0.35dB	NA
			24F/PC	<0.5dB	NA	<0.35dB	NA
	SM	@1310/1550	12F/PC	<0.5dB	>60dB	<0.35dB	>60dB
			24F/PC	<0.7dB	>60dB	<0.35dB	>60dB
Attenuation	@850nmv3.5dB,@1300nmv1.5dB
	@1310nmv0.4dB,@1550nm<0.3dB
Temperature	Operating temperature:-20°C~70°C
	Storage temperature: -40°C~85°C

Ordering information

Cable dimension		3.0mm or customer specified
Cable length		1m,3m,5m or customer specified
Fiber type		B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125,OM3=Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5= Maxband*550
Fiber count		4-48 cores
Fiber color		Refer to Chromatogram
Outer jacket material		LSZH, PVC
Outer jacket color		Refer to Chromatogram
Connector A side	Connector type	US Conec MTP®
	Pin type	Female or male
Connector B side	Connector type	US Conec MTP®
	Pin type	Female or male
Outer jacket color		Type A Straight through, Type B cross over; Type C cross pair
Outer jacket color		Per customer's request or factory standard

Product Description

Product profile

MPO/MTP fiber optic patch cord is mainly used for the connection between the module box and the wire rack in the data center It is also often used to connect active devices and connect QSFR SFP and other optical transceiver modules in the backbone network wiring of the data center
Product feature
• High density and low loss.•Connect high-density module boxes or optical modules.•Apply to multicore count and high density cassette connection.•8,12, 24, 48 cores for option.
Application•Data center infrastructure.•Storage area network.•Optical switch and router•Emerging 40Gbps and 100Gbps protocols compatible.

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Detailed Photos

Our Advantages

Certifications

Company Profile

Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
