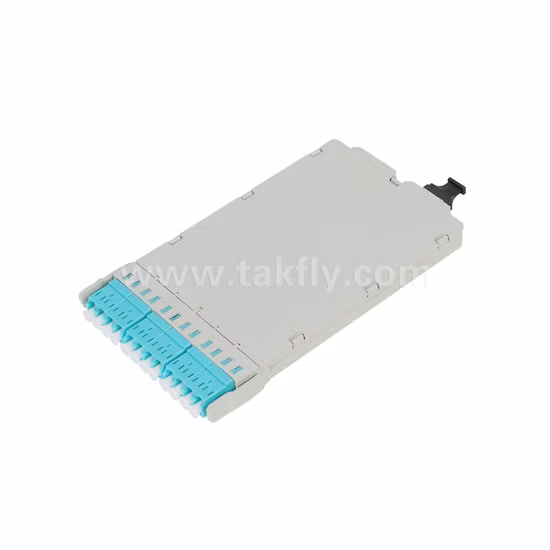

MTP MPO Pre

Overview

Basic Info.

Model NO.	KL-MPO/PC-G-F-MPO/PC-G-F-3-OM3-150-8-3L-B
Ferrule Endface	PC(UPC)
Application	Fiber Distribution Frame, Network Equipment, Fiber Module
Brand	Kolorapus
Transport Package	Package
Trademark	Kolorapus
Origin	China
HS Code	854470
Production Capacity	50000 Pieces/Month

Product Description

Product Parameters

Product Description:
MTP/MPO pre-terminated fiber optic cables are beneficial for rapid deployment in data center and fiber optic infrastructure environments. Spanning the connection between MDA, HDA and EDA inter-area module boxes or fan-out optical cables, its efficient plug-and-play architecture greatly reduces initial installation and daily maintenance costs. KOLORAPUS pre-terminated optical cables use high-quality optical cables and MPO components, low insertion loss, high return loss can fully meet the demanding high-speed network.
Features:
1. Provide 12 to 144 fiber optic connections.
2. Using 4/8/12/24-core MPO connectors, miniaturization minimizes failures and reduces wiring space.
3. Can be smoothly upgraded from 10G to 40G, 100G grid transmission, and supports the delay index of 100G transmission.
4. Various optical fiber specifications such as multi-mode OM3, OM4 and single-mode G652D, G657A2 can be selected according to different configuration requirements of users.
5. A new type of optical cable with a special structure of circular shape and small outer diameter is adopted, which realizes a smaller bending radius of the main optical cable, making storage and laying convenient and fast.
6. Dust-proof, compression-resistant and tensile-resistant protective sleeves at both ends can effectively protect optical cables and optical fiber connectors from damage during transportation and support.
Applicable Standard:
TIA/EIA-568-C
TIA 604-5 MPO
IEC-61754-7
NFPA 262 (OFNP) or IEC 60332 (LSZH)
IEC-60793
GR-1435-CORE
Applications:
1. Optical switch interface connection
2. Backbone array cable
3. Data Center Cabling
Color distinction of the outer sheath of the optical cable:
Yellow:single-mode optical cable (OS1)OS2)
Orange:Multimode 50/125 (OM1), 62.5/125 (OM2)
Water blue:10 Gigabit multimode 50/125 (OM3)
Fuchsia:10 Gigabit Multimode 50/125(OM4)
Technical Indicators:

Optical properties
Insertion loss(dB)	Single Mode Standard Loss	Single Mode Low Insertion Loss	Multimode Standard Loss	Multimode Low Insertion Loss
	≤0.6	≤0.35	≤0.6	≤0.35
Return loss(dB)	≥60		≥20
Durability(dB)	≤0.2 500 dockings
Operating temperature	-20ºC~+70ºC
Test wavelength(nm)	1310		850
Face geometry parameters
Project name	Axis X		Axis Y
	Minimum value	Maximum value	Minimum value	Maximum value
Radius of curvature(mm)	500	-	50	-
Grinding angle	0-0.2	0+0.2	8-0.2	8+0.2
Project name	Minimum value		Maximum value
Fiber height (nm)	1000		3000
Maximum Fiber Height Difference (nm)	600
Adjacent fiber height difference(nm)	-300		+300
Average Fiber Height Difference (nm)	-300		+300
Central depression MM(nm)	300

Fiber Specifications:

fiber type	multimode				single mode
	OM1	OM2	OM3	OM4	G.652	G.657
Fiber core diameter	62.5/125	50/125	50/125	50/125	9/125	9/125
use wavelength(nm)	850/1300	850/1300	850/1300	850/1300	1310/1550	1310/1550
Maximum attenuation(dB/km)	3.5/1.5	3.5/1.5	3.5/1.5	0.36/0.25	0.36/0.25	0.36/0.25
OFL broadband(MHz·km)	≥200/500	≥500/500	≥1500/500	≥3500/500	-	-
effective bandwidth(MHz·km)	-	≥500	≥2000	≥4700	-	-
The longest transmission distance of 10G channel(m)	33	83	300	550	-	-
The longest transmission distance of 40G/100G channel(m)	-	-	100	150	-	-
